Electric Scissor Lifting Platform for Sale
Performance of Electric Scissor Lifts
- Reliability and versatility, enhance efficiency.
- Excellent mobility.
- Compact body can easily pass through single and double channel doorway, using non-marking solid tire.
- Special locations.
- Feature of low noise is perfectly suitable for the noise-sensitive environment, such as office buildings, shopping malls, hotels, schools,etc.
- Compact and flexible.
- Most models are equipped with zero inside turning radius capability, can be easily and flexibly operated in crowed working conditions such as construction site,elevator, and narrow corridor.
- Lift-down, turning, forward and backward movements can be easily operated by one person.
An Introduction to Self-Propelled Scissor Lifts:
Electric scissor lifting platforms, also known as aerial work platform, are a mechanical device used to provide temporary access for people or equipment to inaccessible areas, usually at height. They are generally used for temporary, flexible access purposes such as maintenance and construction work or by firefighters for emergency access, which distinguishes them from permanent access equipment such as elevators. They are designed to lift limited weights, although some have a higher safe working load. They are usually capable of being set up and operated by a single person.----From Wikipedia
Regardless of the task they are used for, electric scissor lifting platforms may provide additional features beyond transport and access, including being equipped with electrical outlets or compressed air connectors for power tools. They may also be equipped with specialist equipment, such as carrying frames for window glass. Underbridge units are also available to lift operators down to a work area.
Besides electric scissor lifts, we also provide rough terrain scissor lifts, self-propelled boom scissor lifts, traction scissor lifts and truck scissor lifts.
Features of Scissor Lifting Platform with Hydraulic System
-
Automatic pothole protection system
- Removeable platform control box
- Proportional controls
- Slide-out battery trays
- All motion alarmHorn
- Roll-out deck extensionFork lift pockets, lift from side and rear
- Four 6V, 225Amp-hour deep cycle batteries
- Tilt cut-oof safety system
- Spring-loaded gate
- LED battery condition indicator
Specifications of Electric Scissor Lifting:
| Product Specifications | GTJZ06 | GTJZ08 | GTJZ10 | ||
|---|---|---|---|---|---|
| Dimensions | |||||
| Working Height | 8.0m | 9.8m | 11.8m | ||
| Platform Height-A | 6.0m | 7.8m | 9.8m | ||
| Platform Height Stowed-B | 1.13m | 1.26m | 1.27m | ||
| Platform Length-C | 2.3m | 2.48m | 2.55m | ||
| Platform Extension Length | 0.9m | 0.9m | 0.9m | ||
| Platform Width-D | 0.85m | 0.85m | 1.15m | ||
| Height Stowed-E | 2.35m | 2.47m | 2.42m | ||
| Length-Stowed-F | 2.3m | 2.48m | 2.55m | ||
| Overall Width-G | 0.85m | 0.85m | 1.15m | ||
| Wheel Base-H | 1.88m | 1.88m | 2.12m | ||
| Ground clearance-I | 0.1m | 0.1m | 0.09m | ||
| Productivity | |||||
| Guardrail Height | 1.0m | 1.0m | 1.0m | ||
| platform Dimensions | 2.3×0.84m | 2.3×0.84m | 2.55×1.15m | ||
| Platform Capacity | 320kg | 250kg | 450kg | ||
| Platform Extension Capacity | 120kg | 100kg | 120kg | ||
| Lift-up | 40s | 40s | 60s | ||
| Lift-down | 25s | 25s | 40s | ||
| Maximum Drive Height | 6.0m | 7.8m | 9.8m | ||
| Weight | 2100kg | 2210kg | 2500kg | ||
| Ground Bearing Pressure | 6.05kg/cm2 | 6.15kg/cm2 | 7.38kg/cm2 | ||
| Chassis | |||||
| Drive Speed (Platform Lowered) | 0-3.2km/h | 0-3.2km/h | 0-3.2km/h | ||
| Drive Speed (Platform Elevated) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | ||
| Turning Radius Inside/Outside | 0m/2.02m | 0m/2.02m | 0.26m/2.5m | ||
| Grade-Ability | 25% | 25% | 25% | ||
| Maximum Tilt | 3° | 3° | 3° | ||
| Non-marking Solid Tires | 406×125mm | 406×125mm | 406×125mm | ||
| Power Source | |||||
| Battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | ||
| Charger | 30Aautomatic | 30Aautomatic | 30Aautomatic | ||
| Hydraulic Reservoir | 16L | 16L | 16L | ||

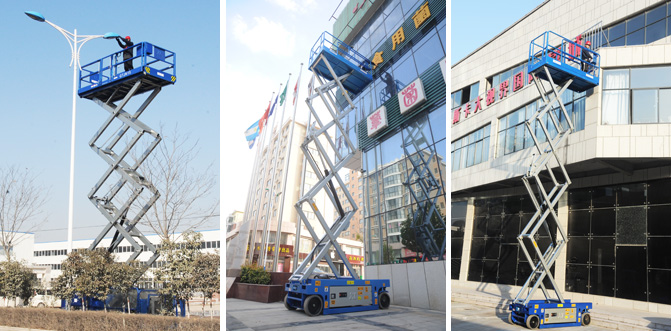

Applications of Electric Scissor Lifts:
